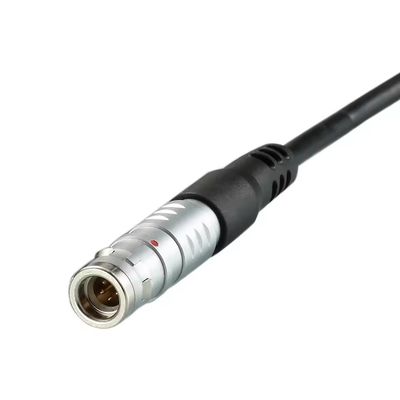

Compatible Lemo K Series Push-Pull Connector Waterproof IP68 Solder Connector

Compatible Lemo K Series Push-Pull Connector Waterproof IP68 Solder Connector

Merknaam:	Ebuddy
Modelnummer:	Eb-tgg.0k.303
MOQ:	1
Prijs:	Onderhandelbaar
Leveringstermijn:	3-5 dagen voor monsters
Betalingsvoorwaarden:	L/C, T/T, Western Union, PayPal

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

CHINA

Certificering:

CE,ROHS

Pinnen:

3-32pin mannelijk en vrouwelijk

Kleur:

Zilver

Materialen:

met een breedte van niet meer dan 15 mm

Pakket:

PP -tas, om op maat te worden

Maat:

Lemo 0K-2K

Stijl:

Stop en contactdoos

Contactmateriaal:

Koperen legering

Neem contact op met het type typecontact:

Soldeer

Verpakking Details:

Standaardpakket

Levering vermogen:

100000 pcs per maand

Markeren:

Lemo K Series waterproof connector

IP68 solder push-pull connector

Lemo K Series compatible connector

Productbeschrijving

Compatible Lemo K Series Push-Pull Connector Waterproof IP68 Solder Connector

Product Features

Quick push pull self-latching system
Solder, crimp or print contacts
Straight or elbow 90°
Multiple keying options to avoid mismating
Full EMC shielding
Multi-pole 2 ~ 32 contacts
High-density installation to save space
Mating cycles: >5000 times
Humidity: at 60°C, max. up to 95%
Temperature range: -45° to +125°
Vibration: 10-20,000HZ, 15g
Mechanical shock: 100g.6ms
Salt fog corrosion: >48h
Protection class: IP67

Technical Specifications

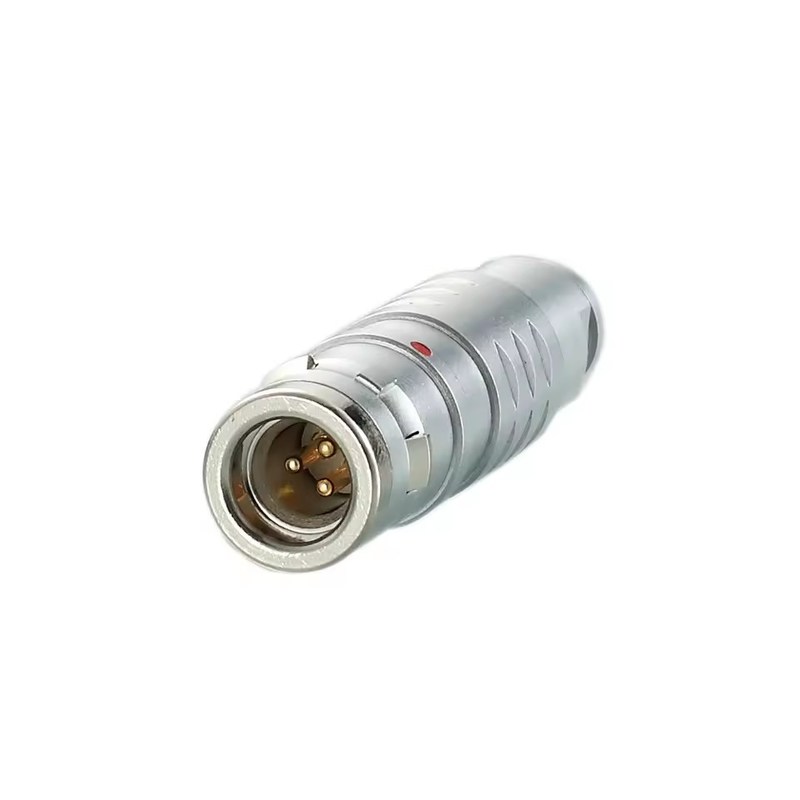

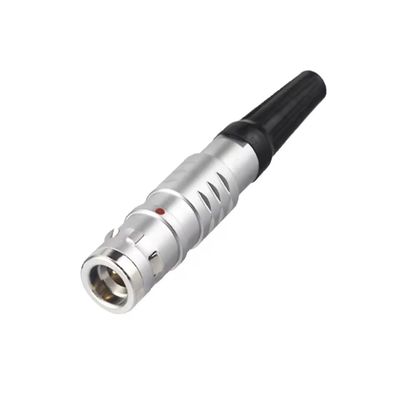

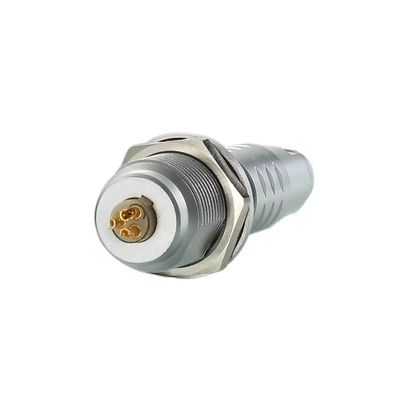

Shell Style/Model	FGG male plug and EGG female Receptacle
Keying	1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material	Brass (black chrome) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces
Rated Current	7A
Contact Dia	0.7 mm (0.028in)
R (max)	6.1 mOhm
Contact Type	Solder
Vtest	700-1000V
Endurance (Shell)	5000

Product Drawings

Application

Frequently Asked Questions

1. Are your company a professional manufacturer?

Yes, we specialized in producing circular push pull connectors and cable assembly since 2015. We have the series connectors and cable assembly like Lemo-B, Lemo-K, Lemo-S, Lemo-F, Lemo-E, Hirose-HR10A, Lemo-P, M4, M12, M16, BNC, B680, B423, 38999, 26482.

2. What is the MOQ?

No MOQ limited, small order is accepted, all is depend on customer real needs.

3. Free sample:

Available. Any needs, please contact us.

4. What about the delivery time?

Sample for 1-2 working days, mass production for 5-10 working days.

5. What is your payment terms?

We accept most of the payment methods, but mainly accept TT, LC, Paypal.

6. Does your product have any warranty?

Yes, all of our connectors can work normally after 5000 cycles mating; our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
